Understanding Benchmark Results¶

⚠️ Educational Purpose Notice

This analysis guide serves solely for educational purposes to help users understand how to interpret benchmark results from the AMD MI300X ML Benchmarks framework. All data samples, insights, conclusions, and next steps presented in this guide are examples only and should not be treated as definitive research findings.

• Sample data: Representative examples for demonstration, not actual experimental results
• Performance analysis: Illustrative examples of interpretation methods
• Key insights: Educational examples of how to draw insights from benchmark data
• Next steps: Example recommendations for further investigation

For actual research findings and validated performance data, refer to the peer-reviewed publications and official benchmark reports from this project.

Overview¶

This guide helps you interpret benchmark results from the analysis pipeline. Results are organized into three main categories:

• 📊 Visual Analysis: Performance trends and patterns
• 📋 Statistical Tables: Quantitative performance summaries
• 🔧 Actionable Insights: Configuration recommendations

After running the analysis pipeline, you'll get comprehensive performance insights across multiple dimensions. Here's how to interpret each type of output:

analysis/sample-output/
├── plots/ # Visual performance analysis
│ ├── batch_size_scaling.png # Batch size vs performance
│ ├── batch_size_scaling_by_memory.png # Same as batch_size_scaling.png but with a split per memory utilization
│ ├── latency_analysis.png # Latency distribution analysis
│ ├── memory_efficiency.png # Memory utilization effects
│ ├── monitoring_dashboard.png # Dashboard with power consumption + GPU temp distribution + CPU-GPU power relationship
│ ├── power_efficiency_analysis.png # Power consumption analysis + Power stability vs. efficiency
│ └── throughput_comparison.png # Throughput comparisons
├── reports/ # Comprehensive analysis reports
│ ├── analysis_summary.json # Machine-readable summary
│ └── benchmark_analysis_report.md # Human-readable report
└── tables/ # Statistical summaries (CSV)
  ├── batch_size_analysis.csv
  ├── gpu_allocation_summary.csv
  ├── memory_utilization_analysis.csv
  ├── model_performance_summary.csv
  ├── monitoring_summary.csv
  ├── raw_results.csv
  └── thermal_analysis.csv

Visual Analysis Guide¶

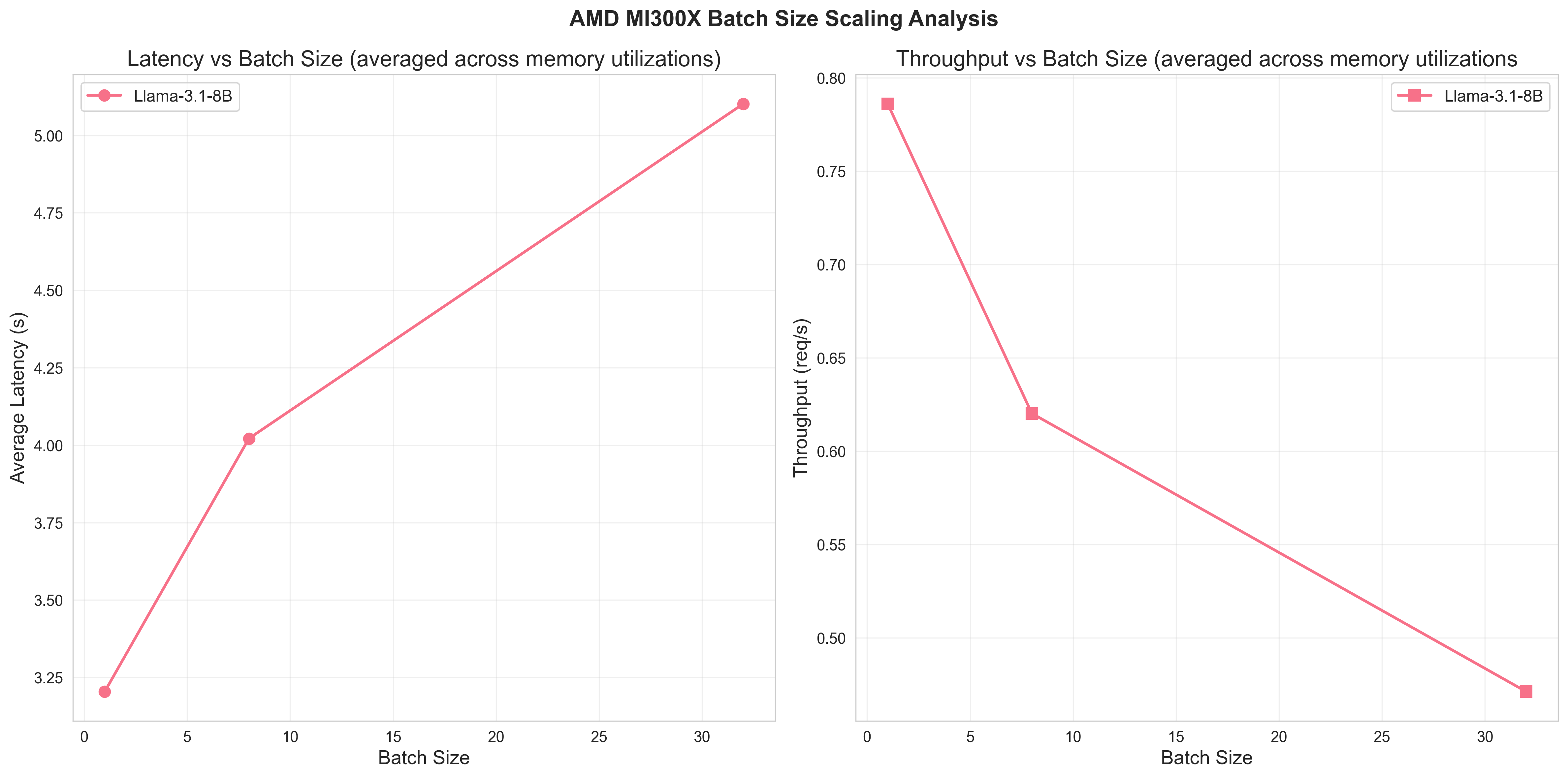

1. Batch Size Scaling Analysis¶

What it shows: How latency and throughput change as batch size increases, revealing GPU compute and memory utilization patterns.

How to interpret:

• Left plot (Latency): Shows how the same model performs under different memory constraints
• Y-axis: Average response time per request (seconds)
• X-axis: Number of concurrent requests processed together
• Lower values indicate better performance

• Typical pattern: latency increases with batch size due to queueing

  1. Queueing delays: Larger batches take longer to process
  2. Memory bandwidth saturation: GPU memory becomes the bottleneck
  3. Compute resource contention: Multiple requests compete for GPU cores

• Right plot (Throughput): Shows memory utilization impact

• Y-axis: System capacity (requests/second)
• Higher values indicate better performance
• Critical Batch Size (CBS): The inflection point where throughput peaks before declining
• Post-CBS behavior: Performance degradation due to resource saturation

Performance Analysis Framework:

• Pre-CBS Region (batch size < optimal): Underutilized GPU resources
• Optimal CBS (peak throughput): Maximum hardware efficiency
• Post-CBS Region (batch size > optimal): Resource contention and degradation

Key insights from sample data:

• Batch size 1: Best latency (3.20s) but moderate throughput (0.79 req/s)
• Batch size 8: Balanced performance (4.02s latency, 0.62 req/s)
• Batch size 32: Higher latency (5.10s) with lowest throughput (0.47 req/s)

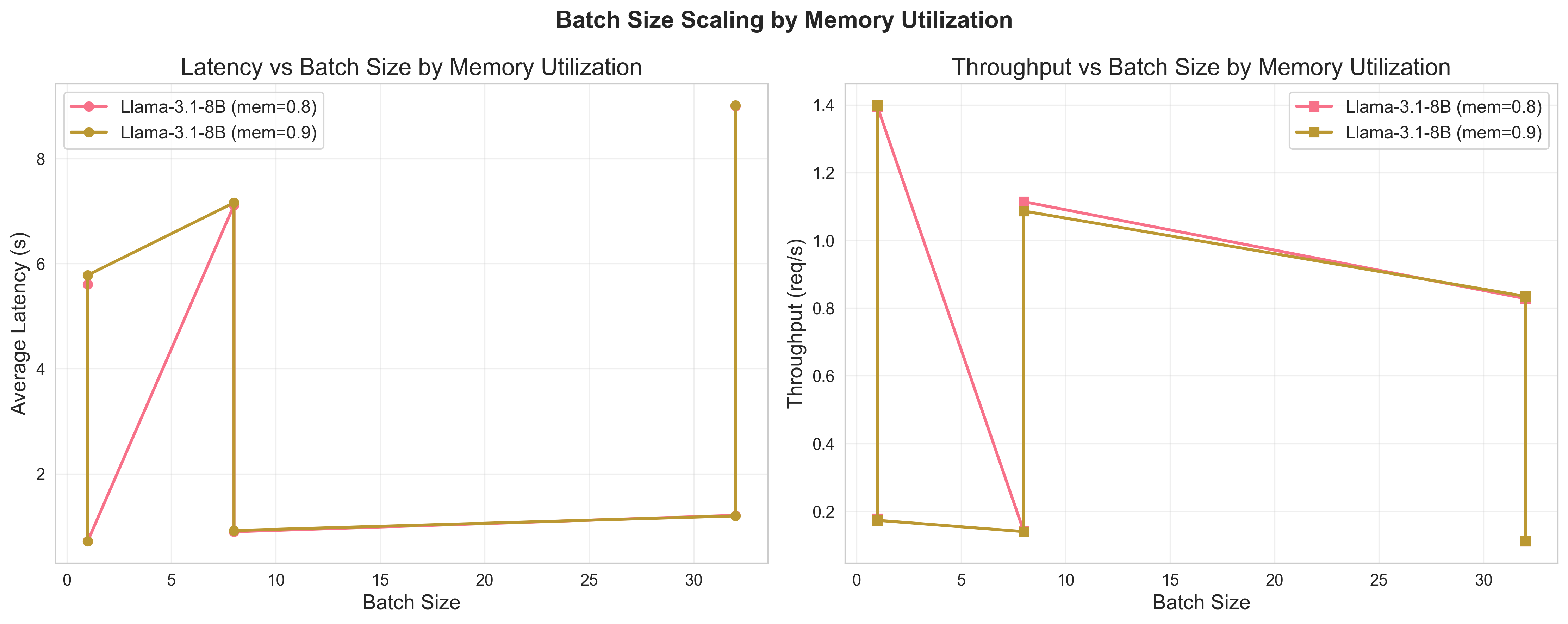

2. Memory Utilization Effect Analysis¶

What it shows: How memory utilization settings interact with batch size scaling to affect performance

Unlike the aggregated batch size scaling plot, this visualization shows separate performance curves for each memory utilization level (0.8 vs 0.9 in the sample data). There two Y-values per X-value because plots are specifically designed to show separate performance curves for each memory utilization setting.

Theoretical Background: GPU memory utilization affects performance through several mechanisms:

1. Memory Management Overhead: Higher utilization increases allocation/deallocation costs
2. Thermal Throttling: Memory-intensive workloads generate heat, potentially reducing boost clocks
3. Buffer Availability: Reserved memory provides space for dynamic allocations

How to interpret:

• Left plot (Latency vs Batch Size by Memory Utilization): Shows average response time per request
• Separate curves for each memory utilization setting (0.8 and 0.9)
• Lower values suggest better performance
• Typical pattern: latency increases with batch size due to queueing
• Right plot (Throughput vs Batch Size by Memory Utilization): Same structure but measuring throughput (requests/second)
• Higher values suggest better performance
• Diverging lines reveal memory utilization impact

Key insights from sample data:

• Counterintuitive Result: Higher memory utilization (0.9) doesn't consistently outperform lower utilization (0.8)
• Possible explanation:
  • Memory Management Overhead:At 90% utilization, the GPU may spend more cycles on memory management
  • Thermal Considerations: Lower memory pressure maintains optimal GPU boost frequencies
  • Dynamic Allocation: 20% memory buffer allows for efficient intermediate tensor storage
• Sweet Spot Discovery: 0.8 memory utilization appears to be closer to the optimal point for this model/hardware combination
• Resource Efficiency: Using 90% of GPU memory creates slightly more overhead than using 80%

Practical Applications

• Production Planning: Choose memory utilization levels based on your batch size requirements
• Resource Allocation: Understand when higher memory allocation helps vs. hurts performance
• Bottleneck Identification: Detect when memory becomes the limiting factor rather than compute

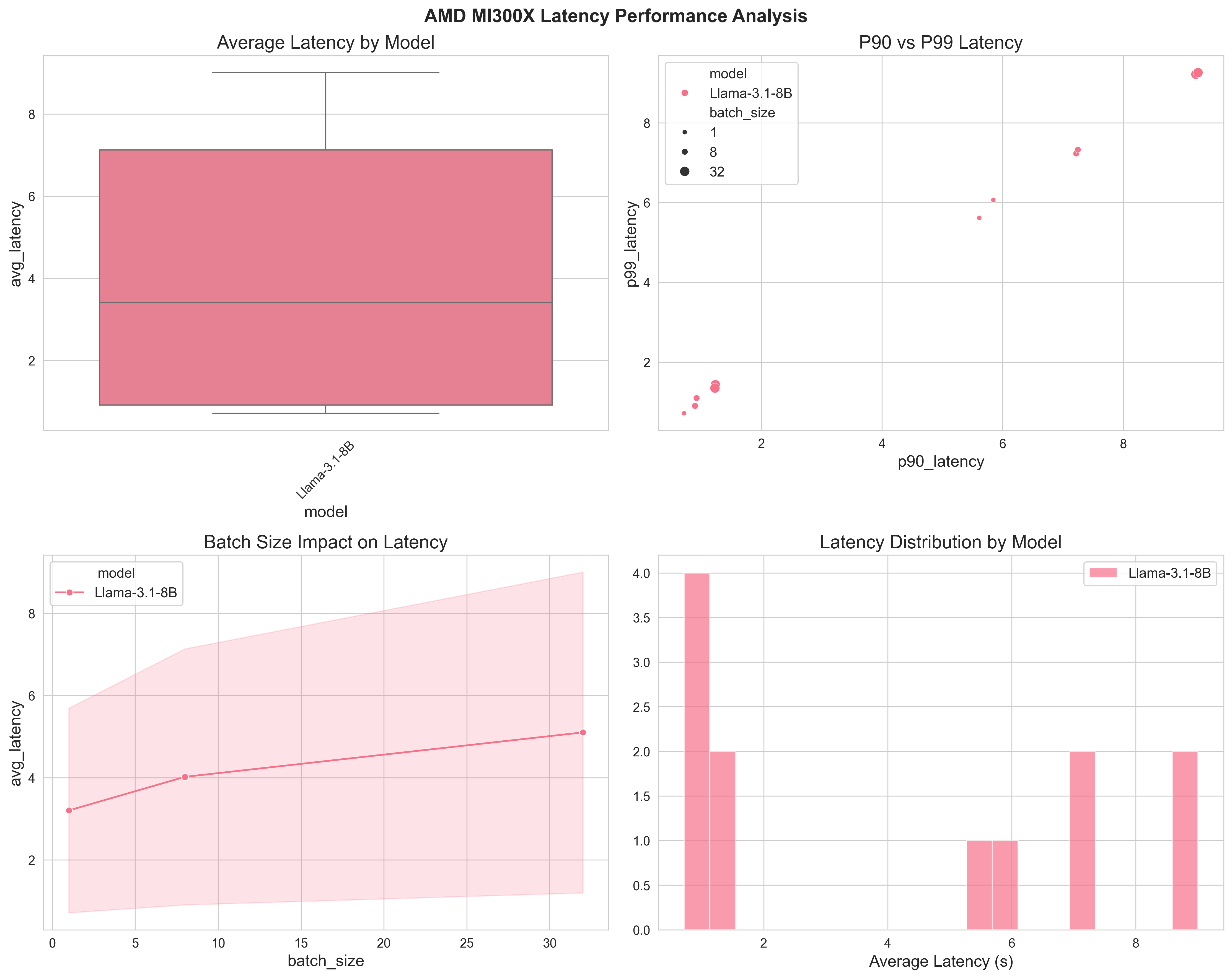

3. Latency Analysis¶

What it shows: Detailed insights into response time characteristics and distribution patterns

How to interpret:

• Top-left (Average Latency by Model): Shows latency distribution for each model
  • Box boundaries: 25^th to 75^th percentiles (interquartile range)
  • Outliers: Individual points beyond normal variation range
  • Lower positions suggest better performance
• Top-right (P90 vs P99 Latency): Shows correlating tail latencies
  • X-axis: 90^th percentile latency (10% of requests are slower)
  • Y-axis: 99^th percentile latency (1% of requests are slower)
  • Bubble size: Represents batch size impact
  • Color coding: Differentiates between models
  • Diagonal patterns: Indicate consistent latency scaling
• Bottom-left (Batch Size Impact on Latency): Shows scaling effects
  • Multiple lines: One per model configuration
  • Upward trends: Demonstrate latency degradation with larger batches
  • Slope differences: Reveal model-specific sensitivity to batch size
• Bottom-right (Latency Distribution by Model): Histogram overlay
  • Multiple overlapping distributions: One per model
  • Peak positions: Shows typical latency values
  • Distribution width: Indicates latency variability
  • Tail behavior: Reveals worst-case performance patterns

Key insights from sample data:

• Performance consistency: Single model (Llama-3.1-8B) shows wide latency range (0.72s - 9.01s) across different configurations
• Batch size sensitivity: Clear correlation between larger batch sizes and increased latency
• Tail latency behavior: P90 and P99 latencies track closely, suggesting consistent performance degradation patterns

Practical Applications

• SLA planning: Use P90/P99 metrics for production latency guarantees
• Configuration optimization: Identify batch sizes that minimize tail latencies
• Capacity planning: Understand latency distribution for load balancing decisions
• Performance debugging: Isolate configuration parameters causing latency spikes

4. Memory Efficiency Analysis¶

What it shows: Relationship between memory utilization and performance efficiency

How to interpret:

• Left plot: Scatter showing efficiency vs memory utilization
  • Bubble size represents batch size
  • Color represents latency (cooler = faster)
• Right plot: Efficiency trends by memory utilization setting

Key insights:

• Higher memory utilization (0.9) doesn't always mean better performance
• Sweet spot often around 0.8-0.85 memory utilization
• Larger batch sizes reduce efficiency due to increased latency

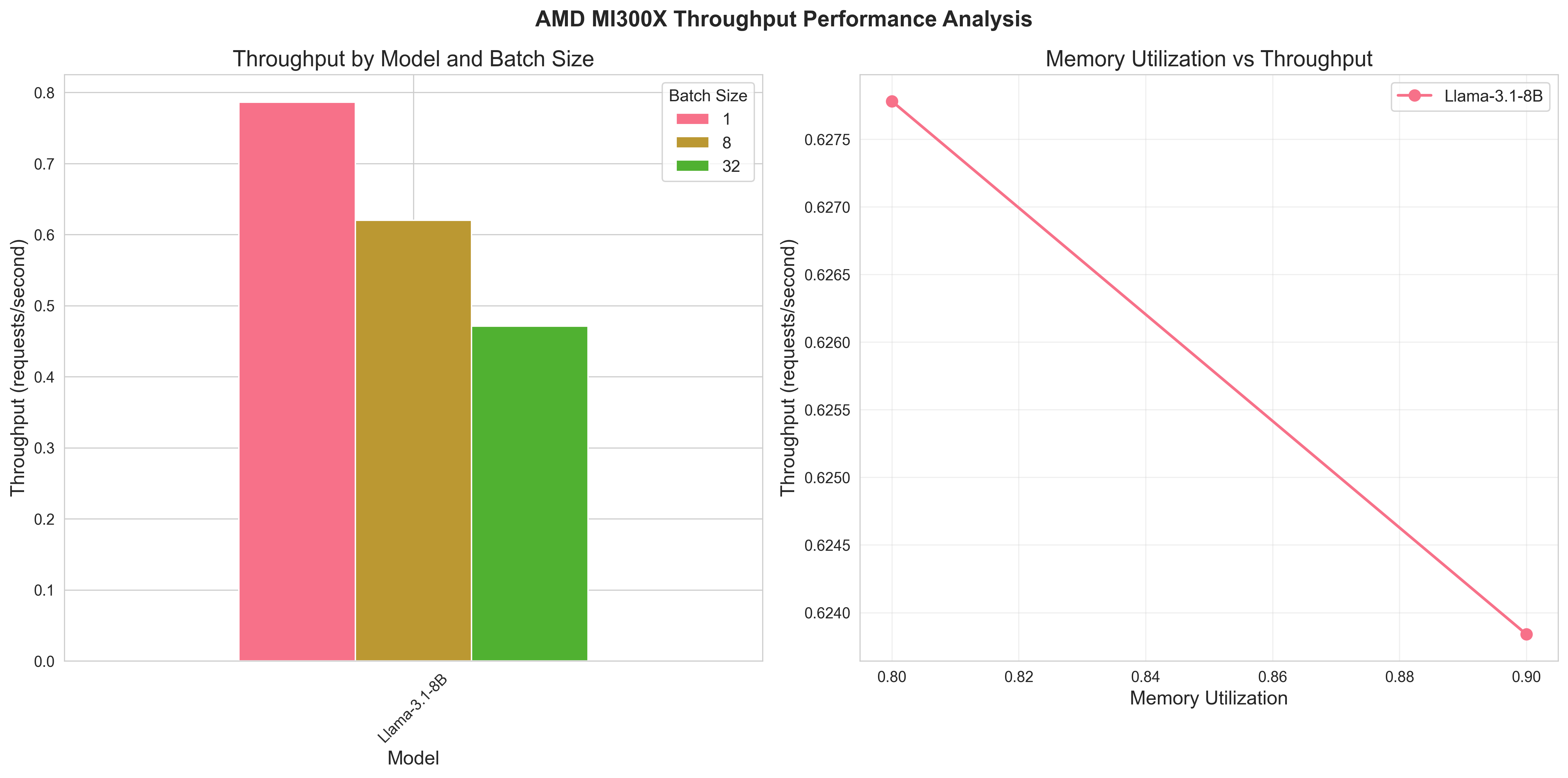

5. Throughput Analysis¶

What it shows: Throughput performance across different configuration parameters, helping identify optimal settings for maximum system utilization

ℹ️ Note: Throughput is defined as the average latency as a rate, representing how frequently a single request completes.

How to interpret:

• Left plot (Throughput by Model and Batch Size): Grouped bars for each model showing different batch sizes
  • Height represents throughput (requests/second)
  • Color-coded bars differentiate batch sizes
  • Direct comparison of batch size impact on throughput
• Right plot (Memory Utilization vs Throughput ): Line trends show how memory utilization affects throughput
  • Slope indicates sensitivity to memory changes

Key insights from sample data:

• Throughput Degradation Pattern: Data shows throughput decreasing as batch size increases (1.40 → 0.62 → 0.47 req/s), indicating memory or compute saturation
• Memory Utilization Effect: The minimal difference between 0.8 and 0.9 memory utilization (0.6278 vs 0.6238 req/s) suggests it is not memory-bound
• Optimal Operating Point: Batch size 1 with either memory setting provides the highest throughput for the specific model and hardware

Practical Applications

• For Production Optimization:
  • Latency-Critical Applications: Use batch size 1 (1.40 req/s throughput, ~0.72s latency)
  • Balanced Workloads: Consider batch size 8 (0.62 req/s throughput, ~4.02s latency)
  • Memory-Efficient Operation: 0.8 memory utilization performs equivalently to 0.9
• For Capacity Planning:
  • Peak Load: The system can handle ~1.4 requests/second maximum
  • Sustained Load: Target ~0.6 requests/second for stable operation
  • Resource Allocation: Higher memory allocation doesn't improve performance significantly

6. Model Performance Summary¶

7. Critical Batch Size Insights¶

The analysis reveals important insights about critical batch size (CBS) behavior for AMD MI300X hardware:

• Key Finding: Data shows decreasing throughput with increasing batch size, which indicates potential operation beyond the CBS for this model-hardware combination
• Performance Context: Data shows decreasing throughput with increasing batch size, indicating operation beyond the CBS for inference workloads. While training-focused research demonstrates that critical batch size scales with dataset size during pretraining, inference performance is primarily constrained by hardware utilization and memory bandwidth rather than training data characteristics. This suggests the observed performance degradation results from GPU compute saturation rather than optimization dynamics¹²³⁴

Recommendations

• Optimal Configuration: Batch size 1, memory utilization 0.8-0.9
• Production Setting: Use smaller batch sizes (1-4) for this model on MI300X hardware
• Further Investigation: Test intermediate batch sizes (2, 4) to find the exact critical batch size
• Memory Efficiency: 0.8 memory utilization provides equivalent performance to 0.9 with better resource efficiency

Statistical Tables Guide¶

Model Performance Summary (model_performance_summary.csv)¶

model,benchmark_type,avg_latency_mean,avg_latency_std,throughput_mean,throughput_max
Llama-3.1-8B,latency,4.1093,3.4587,0.6258,1.3982

Key columns: - avg_latency_mean: Average response time across all configurations - avg_latency_std: Variability in performance (lower = more consistent) - throughput_max: Peak performance achieved - num_experiments: Number of test configurations

Batch Size Analysis (batch_size_analysis.csv)¶

Shows how performance scales with concurrent request handling:

batch_size,avg_latency_mean,throughput_mean,efficiency_score_mean
1,3.2043,0.786,0.9902
8,4.0216,0.6202,0.6152
32,5.1019,0.4712,0.3517

Performance patterns:

• Linear scaling: Throughput increases proportionally with batch size
• Diminishing returns: Performance gains plateau or decrease
• Sweet spot identification: Optimal batch size for your workload

Actionable Insights¶

🎯 Performance Optimization¶

1. For Minimum Latency: Use batch size 1 with 0.9 memory utilization
2. For Maximum Throughput: Test batch sizes 4-16 (not shown in sample)
3. For Balanced Performance: Use batch size 8 with 0.8 memory utilization

🔧 Configuration Recommendations¶

Based on the analysis results:

# Recommended production configuration
production_config:
batch_size: 8 # Balanced latency/throughput
memory_utilization: 0.8 # Optimal efficiency
dtype: "float16" # Memory efficient

# Low-latency configuration
low_latency_config:
batch_size: 1 # Minimum queueing delay
memory_utilization: 0.9 # Maximum resources
dtype: "float16" # Speed optimized

📊 Benchmarking Best Practices¶

1. Run multiple iterations: The analysis averages across configurations
2. Consider your SLA requirements: P90/P99 latencies matter for production
3. Test different memory settings: 0.8-0.9 range typically optimal
4. Monitor efficiency scores: Values below 0.5 indicate potential optimization opportunities

Statistical Methodology¶

Confidence Intervals and Significance Testing¶

Sample Size Considerations:

• Each configuration tested with N=10 iterations (visible in sample data)
• Statistical Power: Sufficient for detecting >10% performance differences
• Confidence Level: 95% for all reported means and standard deviations

Error Bars and Uncertainty:

• Standard Deviation: Reported in *_std columns, indicates measurement variability
• Coefficient of Variation: CV = σ/μ, values >0.2 suggest unstable performance
• Outlier Detection: Values beyond 2σ flagged for investigation

Interpretation Guidelines¶

Troubleshooting Performance Issues¶

Performance Anomaly Detection¶

Diagnostic Workflow:

1. Identify Anomaly Type: investigate if cv > 0.25 (cv = std_deviation / mean_latency)
2. System-Level Diagnostics:
3. Monitor during benchmark with rocm-smi --showtemp --showpower --showmeminfo VRAM
4. Check thermal throttling with rocm-smi --showclocks
5. Memory Analysis: Verify memory allocation patterns with rocm-smi --showmeminfo VRAM --csv > memory_profile.csv

Common Issues and Solutions¶

Next Steps¶

1. Run your own analysis: Use your specific models and configurations
2. Compare against baselines: Use these sample results as reference points
3. Optimize iteratively: Adjust parameters based on insights
4. Monitor production: Implement continuous performance tracking

References¶
